BUILD KIT
 FRAMESET
 Frame

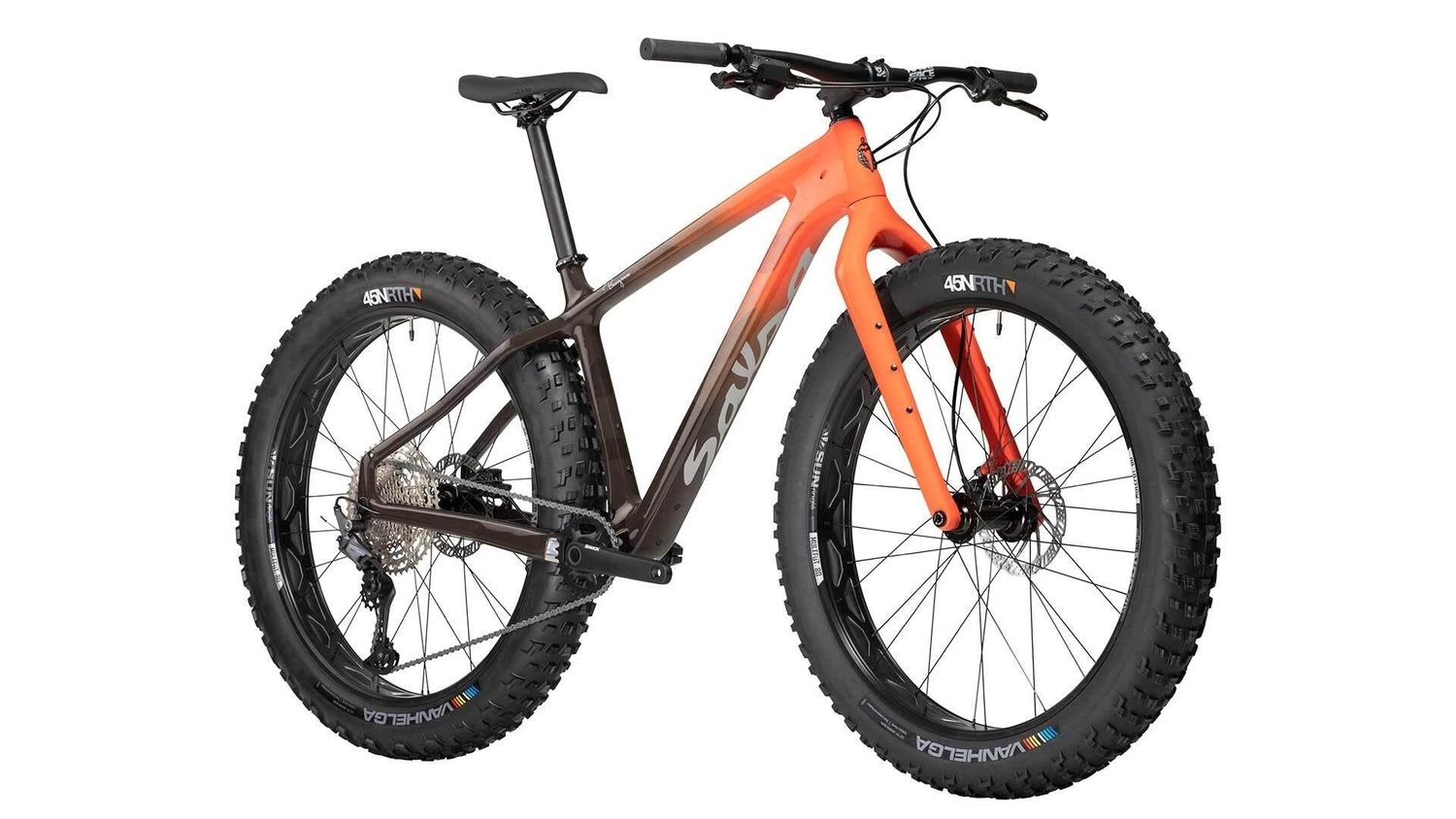

 Beargrease Carbon v2
 Fork
 Bearpaw
 Color
 Black Fade
 Rear Shock
 N/A
 DRIVETRAIN
 Front Derailleur
 N/A
 Rear Derailleur
 Shimano Deore M5100
 Cassette
 Shimano Deore M5100 11–51t, 11 speed -OR- SunRace CSMS7 11–51t, 11 speed
 Chain
 KMC X11 EPT Anti-Rust
 Crankset
 Samox Direct Mount, 30t
 Shifter
 Shimano Deore M5100
 Brakes and Rotors
 Tektro HD-M275/HD-M276 brakes, Tektro rotors (6-bolt, 160 mm)
 COMPONENTS
 Headset (Upper/Lower)
 Cane Creek 40
 Stem
 Salsa Guide Trail, 35,0 mm clamp
 Handlebar
 Race Face Chester 35
 Grips/Bar Tape
 Salsa File Tread Lock-On
 Seatpost
 Salsa Guide
 Saddle
 WTB Volt Steel Medium
 WHEELS
 Front Wheel
 SUNRinglé SRC 15 x 150 mm hub, SUNRinglé Mulefüt SL 80 mm rim
 Rear Wheel
 SUNRinglé SRC 12 x 197 mm hub, SUNRinglé Mulefüt SL 80 mm rim
 Tires
 45NRTH Vanhelga, 27.5 x 4.0" 120 TPI, Tubeless-Ready, Folding
 WEIGHT
 Complete Bike Weight
 30 lbs 6 oz for Medium
 *Specification and pricing subject to change without notice.
FRAME SPECS
 Design Wheel/Tire Size
 27.5 x 3.8" on an 82mm rim
 Alternate Wheel/ Tire Size
 26 x 3.8–4.6" on up to a 100mm rim / 27.5 x 3.0-4.0 on up to a 82mm rim / 29 x 2.25–3.0
 Susp Fork Length
 511mm (100mm)
 Rigid Fork Length
 483–486mm
 Fork Offset
 50–51mm
 Headset-Upper
 IS41
 Headset-Lower
 IS52
 Seatpost
 ø30.9mm
 Seat Collar
 ø35.4mm
 Dropper Compatible
 Yes, internal (stealth)
 Front Derailleur Type
 Not compatible
 Bottom Bracket
 100mm BSA threaded
 Crankset (Max Ring)
 Fat bike 75 chainline, 1x only (32t)
 Rear Brake (Rotor)
 74mm post (160–180mm)
 Rear Spacing
 197 x 12mm thru-axle
 Rear Axle
 ø12 x 220L, TP= 1.5, TL = 20
 Derailleur Hanger
 FS2322
 Bottle Mount Pairs
 XS = 1, SM–XL = 2
 Under Downtube Mount Pairs
 XS–XL = 1
 Top Toptube Mount Pairs
 XS–XL = 1
 Rear Rack Mounts, Lower
 Yes, use Salsa Alternator Rack 170/177
 Rear Rack Mounts, Upper
 No, use Rack-Lock
 Rear Fender Mounts
 No
 Optional Accessories
 Split Pivot Top Cap Tool for Hanger
 Fork Design Wheel/Tire Size
 26 x 3.8–4.8
 Fork Alternate Wheel/Tire Sizes
 26 x 3.8-4.6, 27.5 x 3.0–4.0", 29 x 2.25–3.0
 Axle to Crown
 483mm
 Offset
 51mm
 Steerer Tube Size
 28.6mm
 Steerer Style
 Tapered
 Crown Seat Diameter
 40mm
 Front Brake (Rotor)
 74mm post (160–203mm)
 Front Spacing
 150 x 15mm thru-axle
 Front Axle Size
 ø15 x 198L, TP=1.5, TL=9
 Front Rack Mounts
 165mm Low Rider
 Front Fender Mounts
 Yes, shared with rack
 Accessory Mounts
 Varies by fork spec, consult bike or frameset spec for fork spec and fork features
